CCA Comic Page Scanning Guide

version history:
v1.00 written 5-Jul-1999 by FYWP/CCA
v1.10 revised 5-Feb-2000 by FYWP/CCA
added section 5 C - image touchup
v1.20 revised 24-Feb-2000 by FYWP/CCA
miscellaneous corrections & clarifications, added Appendices A and B
v1.30 revised 5-May-2000 by FYWP/CCA
added sections 8 & 9 -- on dealing with b&w pages
v1.40 revised 3-Sep-2000 by FYWP/CCA
addendum to section 3, easier rotate angle calculation in Photoshop
renamed old section 5 C to 5 D
added new section 5 C - de-browning/yellowing paper


The layout for this guide assumes that you have at least a screen resolution of 1024x768. If you don't, it probably looks a little funny. Sorry about that.

I am always interested in receiving suggestions on how to improve this guide. You can contact me at: fywp_cca@hotmail.com


1. Preparation
2. Scanning the page
3. Image alignment
4. Cropping the image
5. Image cleanup
6. Saving the image
7. Multi-page images
8. Black & White Image Cleanup
9. Storing B&W Images
Appendix A. CCA Picture Format Standards
Appendix B. Example cleanup steps


1. Preparation

There are a couple things that you might want to do before working with scans.

A. Monitor adjust

Not everyone's monitors will give the same results of bright & dark, nor even do some display the relative red, green, and blue components of colors in the same way. There is a concept called "color space" that can be used to provide information on how to display an image on someone else's monitor so that it will appear the same as how it's displayed on yours. Color space works by creating a "color profile" that attempts to quantify any differences between how your display system presents an image with a standardized display system. Your color profile stored along with the image you create, and then any viewing system that can interpret the color profile attempts to match your color profile to its own color profile. This actually can work pretty well, assuming that your image viewing software supports color profiles, and that both the originating and destination systems are accurately calibrated. If you are interested in using color profiles, then do so.

However, since there is no real need to do exact color matching, it's sufficient to just have your monitor adjusted properly for brightness and contrast.

Turn the lights off and draw any curtains shut. Display a black image. Set contrast to 50%. Set brightness all the way down. The screen should be completely black. Now start to turn the brightness up. I like to have my brightness set as high as possible -- right at the point where black becomes visibly grey. Now display an image with large areas of black, white, and color. Adjust contrast so that white is bright white without bleeding. Same should go for colors -- bright colors should be vibrant but not bleeding. Dark colors should still be visible and not muted into black.

Don't sweat the adjustment too much. Unless your monitor is burned out & total crap, as long as your scans look ok on your monitor, the rest of us should be ok.

B. Scanner calibration

Personally I'm not concerned at all with color adjustment on the scanner. Why? Two reasons. First, everyone's monitor looks a little different (same with most printers for that matter) so perfection isn't that much of an issue. Second, it doesn't matter because the tonal range of most comics is fairly limited, and because I actually distort colors from what is really displayed on the original paper, a close color tone is good enough.

Many scanners will allow you to set a light & darkness range for a scanned image, through the use of the histogram tool in your scanner driver (sometimes it is named differently). What the histogram tool setting does for the scanner is take that 30 or 36 bit scan capability and stretch a selected light/dark band into the 24 bit range the computer uses for a better looking color distribution. If you don't understand that, don't worry about it -- many newer scanners automatically do this adjustment for you. If your scanner doesn't do this automatically, I recommend you NOT try to use this type of tool! Again, the color tone range on most comics is fairly limited (even those fancy Image comics), and unless you've got an automatic adjustment, to properly use a histogram tool, you need to adjust it for every single page or run the risk of screwing up light & dark regions.

C. Scanner paper alignment

This is something that is a bit of a problem. Most scanners do not give you a way to align paper perfectly straight with the scanner bed. You can put the edge of your paper flush up against the edge of the glass (I assume you use a flatbed scanner for scanning your comics). The problem doing this is that many scanners also do not pick up anything closer than maybe 1/4" to the edge of the glass. So, to align the page straight, the easiest way I can see is to tape heavy black cardstock to your scanner glass in the middle of the glass. (If you do this, it is important to use black cardstock. Any other color will reflect and shift the hue of page near it.) This is a pain though because you must adjust the card to be perfectly straight, and you will probably discover that most comicbook pages are neither perfect rectangles, nor always printed straight.

An easier solution is to mark an area where you will scan, make sure the page you are scanning falls there, and then rotate the the page image straight via software.


2. Scanning the page

I scan at 300 dpi, with no color, brightness, or contrast correction settings. I use 300 dpi because this helps make sure I don't pick up weird moire patterns during the scan. I also use 300 dpi because when I resize down to 150 dpi, it is a 2:1 ratio which converts very well. (As opposed to doing 200 dpi to 150 dpi which can introduce diamonding and other patterns.) Why resize? Because it lets you apply a blur and then reduce without adversely affecting the image. Plus it is easier to correct dust, fingerprint, scratches, etc at higher resolution.

If you simply press the comic to the glass and scan, often in the result you will see a "ghost" of the the other side of the sheet of paper. Scanners use a very bright light which is strong enough to penetrate through the paper, and the image on the back side is reflected back. This is especially true of comics printed on newsrag.

To avoid this reflection, put a black piece of paper behind the sheet that you are scanning. It won't necessarily cut the reflection completely, but the reflection will not be anywhere near as strong as if you had not done this.

If you scan with the top up, I suggest you also cover the rest of the scanner glass with dark paper to prevent ambiant light from interfering with the scanner. You can keep the comicbook pressed flat by placing a thick magazine or heavy book over the while thing. (I place a relatively heavy software box along the spine to keep that pressed down, and a couple paperbacks to hold the outer edge down.) Be careful not to scratch the glass/plastic with the staples that hold the comic together!


3. Image alignment

Now that you have your scanned image, you may find that the page does not look straight, as in the image to the left. It is important to remember that in many cases, it is not going to be possible to scan a page image as a perfect rectangle. Many comic books are not cut with pages at perfect 90 degree angles! Plus, unless you actually unbind the comic, the curve of the pages will tend to prevent the page image from coming out as a perfect rectangle.

By the way, notice how the area around the comic is black? That is because I backed the page with black paper, like I said in step 2.

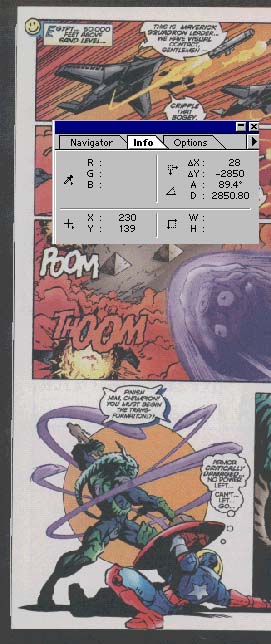

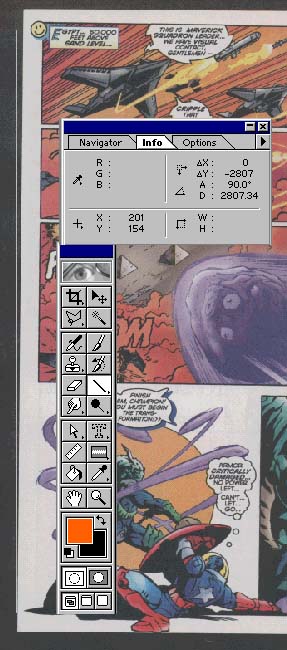

rotate pic 1
line running vertically

rotate pic 2
line runs along page edge
delta x/delta y = 28/2850 = 0.009824561403509
inverse sin(0.009824561403509) = 0.5629149598494
Rotate 0.56 degrees, rotated counter clockwise
We want to get the image as straight as possible. First you must decide what will be considered to be the 90 degree plain. If in question, I almost always pick the vertical outside edge of the page. If there is a large border margin for the page, and the artist was capable of putting the panel frames in straight (some artists cannot), I will choose that border edge. Otherwise, you can probably pick a line of text since text is almost always ment to run perfectly horizontal.

In this example, I'm going to use the left edge. In Photoshop the command to rotate at a particular angle is Image -> Rotate -> Arbitrary (Alt-I, E, A). (see a pic of menu) To pick your angle, you either have to have a very very keen eye (and be able to measure in hundredths) or... you can be like me and use a calculator.

I suggest you zoom to at least "actual pixels size" (ctrl-alt-0) when you do this for better precision.

Make sure you have the Info window turned on (Window -> Show Info) and displaying measurements in pixels (File -> Preferences -> Units & Rulers -> Ruler).

Select the pencil tool (N). Click (and hold) one point along the edge that is to run straight. Now drag to another point on that same edge. You see delta-X and delta-Y on the info box as you move the crosshair? You will also see that it shows you an angle, but since this is measured only in tenths, this is not precise enough for us.

Ok you're holding your line running along the edge you want to rotate to a 90 degree? Remember the delta-X and delta-Y. If you picked the outside edge, X will probably be much smaller than Y. Use the calculator program that comes with Windows (Start button -> Run -> Calc). Make sure you put this in scientific mode (see pic), and divide delta-X by delta-Y. Now we want to take the arc sin of this to get the angle of rotation of this line to the vertical. So hit "inv" button on calc, then "sin" button. (Or "i", "s"). BTW... If you come up with a POSITIVE number, this means you should rotate clockwise. If you come up with a NEGATIVE number, this means you should rotate counter-clockwise.

Take the resulting number and use this as your rotate angle in Photoshop. Now your image should be rotated straight!

The Easy Way To Calculate Rotational Angle In Photoshop

BiggyBoy very rightly pointed out quite a while ago that although the Info window only shows to tenths, if you use the ruler tool (U) to mark a line and then invoke the arbitrary rotate, the angle to rotate the ruler line to the nearest 90 degree plane will be automatically entered to the hundredths place.


4. Cropping the image

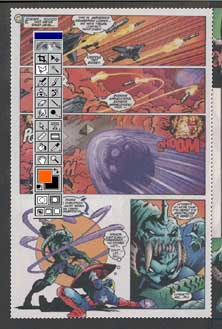

Dashed line is path of polygon lasso.
Unlike crop, poly lasso lets you select the page without chopping off any of the page border!
Ok, now that you have your image straight, you want to get rid of anything that is not actual page. So, there are two tools to do this: Crop (C) and Polygon Lasso (L, in polygon mode instead of the normal freehand mode). You should pick one or the other.

I usually crop when there's a page border. I use polygon lasso (see pic on left) when the image extends all the way to the edge of a page, or any time when I come close to cutting out part of the actual picture. The crop tool is self-explanatory so I will skip the instructions for that.

To use polygon lasso, you will click at the four corners of the page, in order. This follows the exact edge of the page, even if it is not a perfect rectangle. Once I have closed the lasso, use Edit -> Copy (or ctrl-c) to copy the lassoed area to the clipboard. Then File -> New to create a new image (or ctrl-n). By default Photoshop will have the size defined to exactly fit any image stored in the clipboard. Very handy!

You can create the background of the new image as "white", "background" or "transparent". I almost always use "background" with the background color set to black. The only exception to this is if most of the page edge is white, in which case I will either choose white, or I will use the eyedropper to set the background to the whitish color of the page edge.

Once your new blank image is created, make it active and Edit -> Paste (or ctrl-v) to paste your clipboard image to it. Once you do this you can close the original image.


5. Image cleanup

Remember how I don't mess with histogram & whatnot? That's because I do color correction now in Photoshop. There is a different process for dealing with black & white, greyscale, and color images.

A. Curve Tool


Curves - pic 1
Without curve

Curves - pic 2
Colors curved to dark

Curves - pic 3
Colors set curved to light

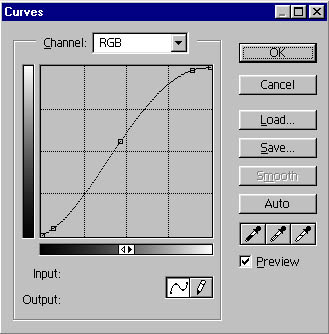

Curves - pic 4
Light tones made lighter, dark tones made darker, midrange left alone

The most important thing you can do with a color image is set light & dark correctly, also sometimes called gamma correction or gamma curve. In Photoshop this is the "curve tool". (There is also a histogram adjustment but this is too crude for what we want.)

To get to the curve tool in Photoshop, use Image -> Adjust -> Curves (I, A, V) or Ctrl-M. Initially (i.e. unmodified, see panel "Curves - pic 1") it looks like a straight line, yes? The X axis represents the current tone bright/dark value. The Y axis represents the "changed to" value.

In "Curves - pic 2": Towards the dark end of the X axis, colors are darkened very visibly, moderately in midrange tones, and not much at all towards the light end.

In "Curves - pic 3": This is basically the reverse of pic 2.

"Curves - pic 4" represents what usually you will actually want. Blacks are very dark, whites are much closer to white than grey, and mid range colors stand out clearly instead of having a slightly washed out look. The actual "severity" of the curve that you use can change a lot from book to book. My rule of thumb: Make blacks as black as possible and whites as white as possible, without losing any detail in the image. I prefer to let black to look dark grey and white to look light grey rather than lose image quality. With the newer books, higher quality printing means that the curves can be quite gentle, just enough to bring out colors more strongly and remove the "hazey" quality that a lot of scanners have.

B. Blur Tool

The blur tool (Filter -> Blur -> Blur, also remember ctrl-f for "apply last filter used") usually has a very subtle effect, but an important one. Blur will average pixels that are nearby each other. The downside of this is that edges will appear "softer" (i.e. blurry). However, the good thing about blur is that it will make areas of shading appear to be smoother, especially when color is done as a dither pattern. When scanning at 300 dpi and then reducing size to 150 dpi, any "softening" of lines and edges will be lessened or eliminated by the decrease in resolution, but the advantages of smoothing colored areas will remain. Using blur is generally a waste of time (or causes a very bad result) on a black & white image. Using blur on some older comics that use a very coarse 4 color dither (like older Marvels) is sometimes also not productive. Use your own judgment.

The one other big advantage of blurring a dither pattern is that it will result in a smaller file with better jpeg compression and fewer color artifacts. In the page used in the above examples, saving with blur resulted in a file about 50KB smaller than without.

C. De-Browning/Yellowing Paper

For comics printed on newsrag, what was originally whitish paper will often turn yellow or brown. To remove this, I will either use the Color Replace (Image -> Adjust -> Replace Color) or the Hue/Saturation control (Image -> Adjust -> Hue/Saturation or ctrl-u). Effectively due to the high "fuzziness" value I use in Color Replace, they end up doing about the same thing.

Apologies that the table below is so wide, and that the image is a really poor example due to the limited color palette.
The first (this) row may be a bit confusing. You should probably look at the pics & explanatory text on this table in order. At the far right is the ORIGINAL unretouched image, as it came off the scanner. Pics brown6 and brown7 to the immediate right are to answer the question "why not just use auto-levels?"

The second row is for de-browning via Color Replace.

The third row is for de-browning via Hue/Saturation.

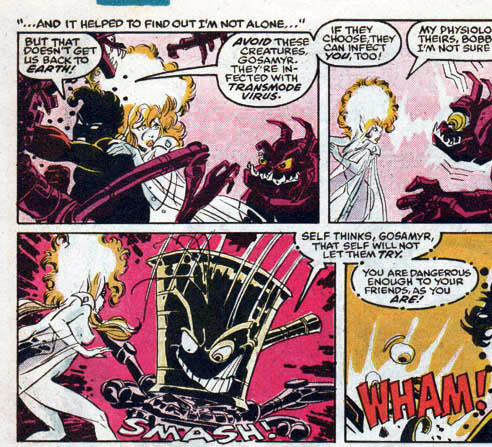

pic. brown7 Level tool applied to brown2
(brown2 is the the image directly below).

Correcting the brown color with Color Replace first helps the auto-level function quite a bit, but this image still has a bluish cast. You can do better by setting the level tool manually or by using the curve tool.

Photoshop permits settings for almost all image adjust tools to be saved. Between this and the ability to batch process, there really is no good reason to be using auto-levels!


pic. brown6 Auto-Levels applied to the original image.

I don't particularly like to use the level tool on anything except black & white images, although if you must do channel adjustments under RGB or CMYK, the levels tool is certainly useful for viewing the image histogram.

Auto-levels will force the darkest and lightest areas of an image to pure black and white. However, using it to change brown paper (the brown is the lightest color) to white often results in a "dirty" look, as well as doing strange things to the coloring. In addition, in the rare instances where there is no black on the page, auto-leveling will completely destroy the appearance of a page.


pic. brown1 the original image off the scanner

For color replace, eyedrop a mid-tone from an uncolored (browned) area of paper. Generally, I set the fuzziness between 30 and 100, and tend to increase lightness between 20 and 50 while reducing saturation just a little bit. You should NOT try to change the paper to bright white -- if you do, you'll just end up destroying all the coloring. I attempt to approximate the original color of the newsrag.

pic. brown2

Image after the Color Replace to the left is applied to the original image.

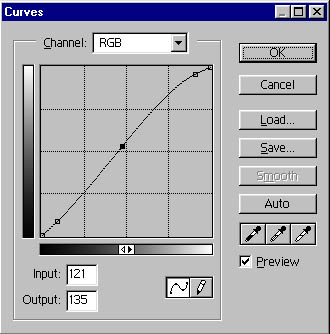

After the color replace, use the curve tool (or levels if you prefer) to whiten & brighten up the top color range of the image a bit.

pic. brown3

Paper tone is about what it would be for the original comic, and color saturation remains about what it was from the original scan. Coloring for comics printed on newsrag often do take into consideration the affect from being printed on less than pure white paper. I like this appearance just fine, and it's probably what I'd go with for my own scans.

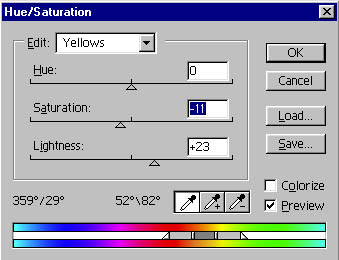

For Hue/Saturation, change the Edit pulldown from Master to Yellows (or reds, or whatever, it doesn't really seem to make a difference) and then eyedrop a mid-tone from an uncolored (browned) area of paper. This sets up the range bars you see between the color bands. Adjusting these is analogous to the "fuzziness" of color replace. For some reason when using the Hue/Sat control, I tend to reduce saturation more and increase lightness less than when messing around with Color Replace. There's no particular reason for doing it this way. Again, I don't try to change the paper color to bright white.

pic. brown4

After the color replace, use the curve tool (or levels if you prefer) to whiten & brighten up the top color range of the image a bit. Note that this isn't the same curve used directly above, and both this and the desaturation from the Hue/Saturation are the main reasons for the difference between pics brown3 and brown5...

pic. brown5

About the same as brown3 except yellows aren't saturated as heavily.



D. Touch Up

A lot of times, there will be problems with the scanned image. The source of these can be from a blemish in the printing, dust on your scan bed, or something like the interior staples.

All of these problems may be corrected the same way -- by manually touching up the affected area. In "touchup pic 1" you see the original scan. There's a staple that I want to get rid of. The simplest way to do this is to overwrite the area with another similar area of the picture. I first use the lasso tool (L, in freehand mode) to select an area to repair. The lasso selection doesn't have to be perfect the first time. Photoshop allows addition to the lassoed selection by holding the Shift key, and subtraction from it with the Alt key. In "Touchup pic 2" I've selected an area of staple.

By moving the lasso cursor into the center of the lassoed area, I can drag it to another place on the picture that has an appropriate pattern for the problem area (touchup pic 3). I copy this area (Edit -> Copy or ctrl-c) and then paste and move it over the original lasso point (touchup pic 4)

This process is repeated this until the problem is fixed (touchup pic 5)

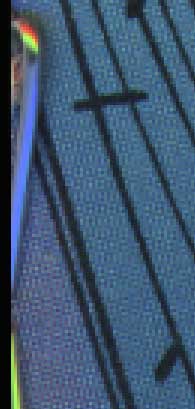

Touchup Pic 1

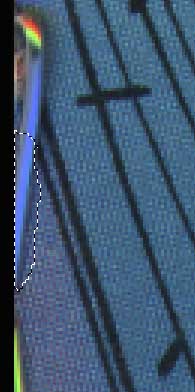

Touchup Pic 2

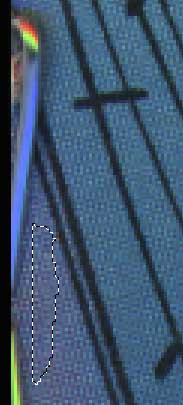

Touchup Pic 3

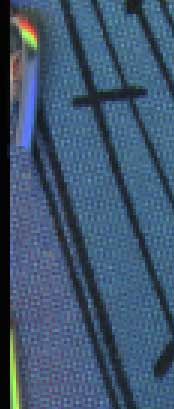

Touchup Pic 4

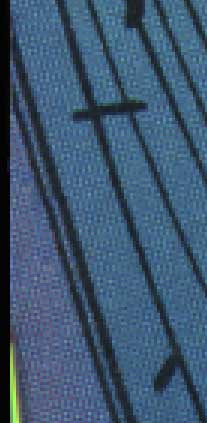

Touchup Pic 5

In some instances where there really is no efficient way to use this copy/paste approach, I usually use the airbrush.

I suggest that you do touchup after rotating & cropping your image but before applying any color correction (e.g. blur, curve tool, color change) to it.

So that I'm not performing any unnecessary effort, I view the picture at the final resolution to see exactly what spots on the image are in need of correction -- very small problems (such as a spec of dust) will tend to disappear when downsizing the image from 300 dpi to 150 dpi. (For a quick view... ctrl-alt-0 zooms to actual size, followed by ctrl-minus ctrl-minus shows a 1:2 zoom)


6. Saving the Image

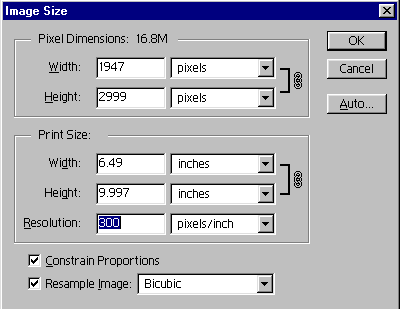

A. Resizing the image

Since I scan at 300 dpi, when I've made all the changes I'm going to make, I first flatten all layers (Layers -> Flatten) then reduce in size. Since I save scanner output as TIFF, the image has the "300 dpi" resolution stored internally, and all I have to do is change that to 150. If you save your scanner output as BMP or some other format that doesn't store resolution information, then the resolution will probably show as "72" or "96". Simply halve the current resolution to get 150 dpi. (If you're not sure, most scanned comic book pages at 150 dpi will be about 1000 by 1500 pixels.) It is a bad idea to attempt to fit perfectly into a specific width and height. Reducing 2:1 works because pixels can be resampled in a very regular pattern. Other ratios (like 4:3 and 3:2) can introduce artifacts in color dithers.

B. Saving As...

I save as JPEG, quality 8. I used to save at quality 7, examine the image for quality, then resave as quality 8, but for the sake of time and because I don't care all that much about 100KB or so, now everything is saved at quality 8. My quick rule of thumb of "examining the image for quality": View the jpeg image at x2 size. If you see noticeable distortion due to jpeg compression, it's compressed too much.

(Note: The quality "values" here are for PhotoShop v5.0 -- version 5.5 now has a scale that extends from 0 to 12 instead of 0 to 10.)


7. Multi-Page Images

To join a two page spread together, align the interior of the pages to vertical and then join them together. Since printing errors can make a perfect join difficult, you will need to decide whether or not it is actually possible to seamlessly join the two pages.

As a general tip, since color response for a lot of scanners is not even across the scan bed, scan one page right side up and the other upside down.

I will show an example of this later.


8. Black & White Image Cleanup

Always the first step: Image -> Mode -> Greyscale. This should be obvious, but I've seen a lot of b&w scans of patterns that cause strange colored moire patterns.

There are two separate styles of black and white images. Greyscale images, which make use of many gradations of light & dark, and pure black & white. The type of image affects what you should be willing to do for cleanup.

This is a greyscale image.

This is a black & white image.

It should be pretty apparent what type of image you're looking at, but let's bring up the Levels tool (Image -> Adjust -> Levels, or Ctrl-L). In other programs (including I believe PaintShop Pro) this is also referred to as a Histogram Tool. The histogram is a representation of the number of pixels distributed in each of the tonal areas. In the right hand image, you can see that almost all pixels fall into two categories: dark area and light area. This is the sign of a true black & white image. In the left hand image, you see that there's definitely a peak for dark, and less so for light, there's a lot of "in between" pixels as well. This is an indicator of a greyscale image.


For simple correction of a b&w or greyscale image, you can generally get good results by moving the low & high sliders to a point within the peak dark & light pixel range. (The middle slider controls weighting towards light or dark. If you really need to use this, it might also be time to consider using the curve tool.)

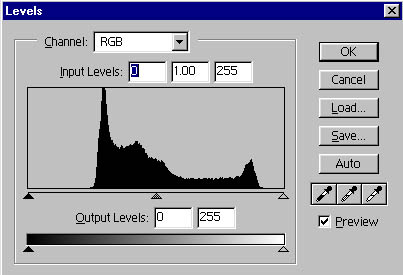

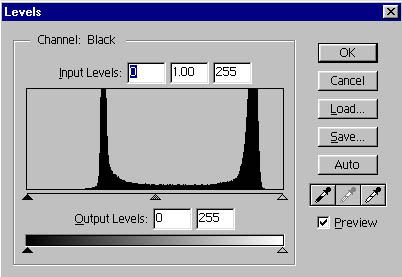

To the left, the top level tool gives an example of where to move the sliders. (Underneat is the histogram after the level tool has been applied). It is possible to get a similar result simply by cranking up contrast, but you will gain better control over the finished image by using the levels tool.

Most greyscale images can also be fixed via the Levels tool, though under certain circumstances, you might be better off with the curve tool. (For example, with a true half-toned image, you might be better off using a stair-step, curve.) Note that with some greyscale images, there may not be any pixels that are supposed to be absolutely black or absolutely white! So be very careful how you do adjustments.

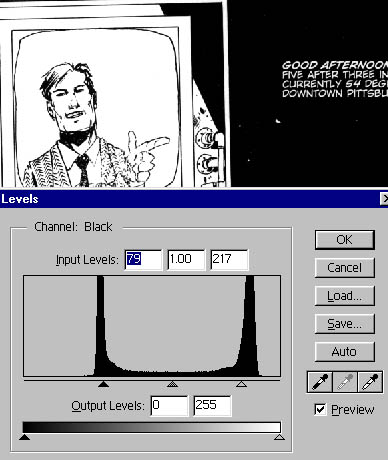

(below: another example of the magic of level tool on a b&w image)

Normally when working on a b&w image, I do the level correction first, then fix any remaining problems, then resize down. For a greyscale image, I correct image errors first, then correct levels, the resize down.


9. Storing B&W Images

PALETTE REDUCTION SHOULD BE THE LAST STEP BEFORE SAVING!

B&W images (and half-toned images) are 8-bit imags. This means they are stored as 256 (0 through 255) levels of lightness/darkness. Many b&w images were in fact created for printing as a 1-bit image -- absolute black, or absolute white.

This means that you can do some intelligent palette reduction to more efficiently store the image in a lossless format (e.g. GIF), instead of using lossy jpeg (which usually ends up degrading the picture quality). I don't want to have to beat anyone's head in about this, but I know that there are some people who need convincing over the issue of size considerations: A restricted palette GIF saves smaller & with less image distortion than an 8-bit jpeg.

figure 1
b&w lines (7 color) - gif: 2182 bytes

This image looks like it's black & white, but in fact, it contains 7 shades. Don't believe me? Check it for yourself.


figure 2
b&w lines (7 color) saved as jpg: 7,819 bytes at quality 5 (ps5.0)

This also looks like it's black & white, but now it in fact has 15 shades due to jpeg artifacting. (Artifacting is visually very minimal here, but that's because these are all just parallel lines).


figure 3
b&w lines (2 color) - gif: 1,547 bytes

This is the image after I converted the palette to absolute black & white. You really can't tell the difference from figures 1 & 2, but it's considerably smaller.


figure 4
b&w lines reduced in size 50%

I converted the image from figure 3 to greyscale, then reduced it in each dimention by 50%. Now it's 7 colors again! Why? because a black pixel next to a white pixel, when reduced, are averaged together -- this keeps the general tone of the image visually more similar to the larger version, and ends up being a LOT better than simply throwing every other pixel away.

So be aware that the more you reduce a b&w image in size, the more levels of grey you need to store to maintain the same general appearance as the larger image!

Here's how to get Photoshop to do a "fit to" palette reduction:

figure 1: 8bit gs as GIF: 66,631 bytes
Image -> Mode -> RGB Color
Image -> Mode -> Indexed Color
(you have to do it in this order to get the palette window...)

change "Exact" to "Custom" and you will then get to define the color table to which you will map your image.

Note! This is VERY different from the sequence
Image -> Mode -> Color Table !!

Many b&w and greyscale images will map into an evenly graded 4 bit (16 shades) table. So. First step, left click+hold on the upper right corner, and drag one row over.
(notice that the top row colors are highlighted)

You'll then get a color picker for "first color" for which you should set r,g,b values to 255,255,255 (pure white). For "last color" set r,g,b values to 0,0,0 (pure black). Then, select everything from the second row to the end, and set both first & last colors to 0,0,0 (all black). You want a color table that looks like this:


figure 2: 4 bit gs as GIF: 24,012 bytes

This is probably the best compromise between size and quality.

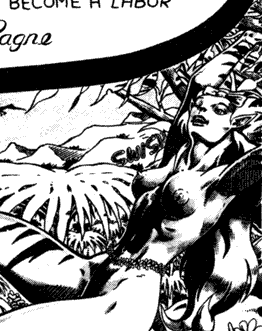

figure 3: 3 bit gs as GIF: 16,295 bytes

25% smaller than 4 bit, but the reduced color palette is pretty noticeable in some spots (look at the shading beneath the bubble).


figure 4: 8 bit gs as JPG (quality 5 ps5.0): 29,634 bytes

Just about indistinguishable from figure 1, plus a whole lot smaller. On the other hand, there also isn't a heck of a lot of difference between this and figure 2, and GIF doesn't introduce any artifacting.

Note that palette shades for indexed colors are stored in terms of the number of bits it takes to represent them.

1 bit = 2 shades, 2 bit = 4 shades, 3 bit = 8 shade, 4 bit = 16 shades, 5 bit = 32 shades, 6 bit = 64 shades, 7 bit = 128 shade, 8 bit = 256 shades

It makes absolutely no sense to restrict yourself to, for example, 20 shades, because GIF storage will still be 5 bits per pixel. If your image requires more than 32 shades to prevent degredation, you might as well be using jpeg compression.


Appendix A. CCA Picture Format Standards

Since some people have been asking, reprinted from the original CCA webpage:

Because the goal is to create a high quality image archive of our comics, image resolution and color quality are important to us. Through a general consensus, we've agreed on the following:


Appendix B. Example cleanup steps

Gone for now, because it's kind of useless without before & after, and because I don't have the various parameter save files loaded up here. If anyone's really that interested, drop me a line.
